Basic methods
Behavpy has lots of built in methods to manipulate your data. The next few sections will walk you through a basic methods to manipulate your data before analysis.
Filtering by the metadata
Section titled “Filtering by the metadata”One of the core methods of behavpy. This method creates a new behavpy object that only contains specimens whose metadata matches your inputted list. Use this to separate out your data by experimental conditions for further analysis.
# filter your dataset by variables in the metadata wtih .xmv()# the first argument is the column in the metadata# the second can be the variables in a list or as subsequent arguments
df = df.xmv('species', ['D.vir', 'D.ere', 'D.wil', 'D.sec', 'D.yak', 'D.sims'])# ordf = df.xmv('species', 'D.vir', 'D.ere', 'D.wil', 'D.sec', 'D.yak', 'D.sims')
# the new data frame will only contain data from specimens with the selected variablesRemoving by the metadata
Section titled “Removing by the metadata”The inverse of .xmv(). Remove from both the data and metadata any experimental groups you don’t want. This method can be called also on individual specimens by specifying their id and their unique identifier.
# remove specimens from your dataset by the metadata with .remove()# remove acts like the opposite of .xmv()
df = df.remove('species', ['D.vir', 'D.ere', 'D.wil', 'D.sec', 'D.yak', 'D.sims'])# ordf = df.remove('species', 'D.vir', 'D.ere', 'D.wil', 'D.sec', 'D.yak', 'D.sims')
# both .xmv() and .remove() can filter/remove by the unique id if the first argument = 'id'df = df.remove('id', '2019-08-02_14-21-23_021d6b|01')Filtering by time
Section titled “Filtering by time”Often you will want to remove from the analyses the very start of the experiments, when the data isn’t as clean because animals are habituating to their new environment. Or perhaps you’ll want to just look at the baseline data before something occurs. Use .t_filter() to filter the dataset between two time points.
# filter you dataset by time with .t_filter()# the arguments take time in hours# the data is assumed to represented in seconds
df = df.t_filter(start_time = 24, end_time = 48)
# Note: the default column for time is 't', to change use the parameter t_columnConcatenate
Section titled “Concatenate”Concatenate allows you to join two or more behavpy data tables together, joining both the data and metadata of each table. The two tables do not need to have identical columns: where there’s a mismatch the column values will be replaced with NaNs. The tables must use the same canvas.
# An example of concatenate using .xmv() to create separate data tablesdf1 = df.xmv('species', 'D.vir')df2 = df.xmv('species', 'D.sec')df3 = df.xmv('species', 'D.ere')
# etho.concat() is a behavpy wrapper that expands the pandas function to concat the metadatanew_df = etho.concat(df1, df2)# it can process multiple data frames, also unpacked from a listnew_df = etho.concat(df1, df2, df3)new_df = etho.concat(*[df1, df2, df3])Analyse a single column
Section titled “Analyse a single column”Sometimes you want to get summary statistics of a single column per specimen. This is where you can use .analyse_column(). The method will take all the values in your desired column per specimen and apply a summary statistic. You can choose from a basic selection, e.g. mean, median, sum. But you can also use your own function if you wish (the function must work on array data and return a single output).
# Pivot the data frame by 'id' to find summary statistics of a selected columns# Example summary statistics: 'mean', 'max', 'sum', 'median'...
pivot_df = df.analyse_column('interactions', 'sum')
# the output column will be a string combination of the column and summary statistic# each row is a single specimen interactions_sumid2019-08-02_14-21-23_021d6b|01 02019-08-02_14-21-23_021d6b|02 432019-08-02_14-21-23_021d6b|03 242019-08-02_14-21-23_021d6b|04 152020-08-07_12-23-10_172d50|18 452020-08-07_12-23-10_172d50|19 322020-08-07_12-23-10_172d50|20 43Re-join
Section titled “Re-join”Sometimes you will create an output from the pivot table or just have a column you want to add to the metadata for use with other methods. The column to be added must be a pandas series of matching length to the metadata and with the same specimen IDs.
# you can add these pivoted data frames or any data frames with one row per specimen to the metadata with .rejoin()# the joining dataframe must have an index 'id' column that matches the metadata# rejoin modifies the behavpy object in place and returns nothing
df.rejoin(pivot_df)Binning time
Section titled “Binning time”Sometimes you’ll want to aggregate over a larger time to ensure you have consistent readings per time points. For example, the ethoscope can record several readings per second, however sometimes tracking of a fly will be lost for short time. Binning the time to 60 means you’ll smooth over these gaps.
However, this will just be done for 1 variable so will only be useful in specific analysis. If you want this applied across all variables remember to set it as your time window length in your loading functions.
# Sort the data into bins of time with a single column to summarise the bin
# bin time into groups of 60 seconds with 'moving' the aggregated column of choice# default aggregating function is the meanbin_df = df.bin_time('moving', 60) t_bin moving_meanid2019-08-02_14-21-23_021d6b|01 86400 0.752019-08-02_14-21-23_021d6b|01 86460 0.52019-08-02_14-21-23_021d6b|01 86520 0.02019-08-02_14-21-23_021d6b|01 86580 0.02019-08-02_14-21-23_021d6b|01 86640 0.0... ... ...2020-08-07_12-23-10_172d50|19 431760 1.02020-08-07_12-23-10_172d50|19 431820 0.752020-08-07_12-23-10_172d50|19 431880 0.52020-08-07_12-23-10_172d50|19 431940 0.252020-08-07_12-23-10_172d50|20 215760 1.0# the column containing the time and the aggregating function can be changed
bin_df = df.bin_time('moving', 60, t_column = 'time', function = 'max') time_bin moving_maxid2019-08-02_14-21-23_021d6b|01 86400 1.02019-08-02_14-21-23_021d6b|01 86460 1.02019-08-02_14-21-23_021d6b|01 86520 0.02019-08-02_14-21-23_021d6b|01 86580 0.02019-08-02_14-21-23_021d6b|01 86640 0.0... ... ...2020-08-07_12-23-10_172d50|19 431760 1.02020-08-07_12-23-10_172d50|19 431820 1.02020-08-07_12-23-10_172d50|19 431880 1.02020-08-07_12-23-10_172d50|19 431940 1.02020-08-07_12-23-10_172d50|20 215760 1.0Wrap time
Section titled “Wrap time”The time in the ethoscope data is measured in seconds from the reference hour or experiment start, and over several days these numbers get very large. Use this method to wrap the time column to a given period in hours, the default being the normal day (24): every value becomes the time within its day, still in seconds.
# Wrap the time column to a given time period, e.g. 24 hours# wrap_time returns a new behavpy objectnew_df = df.wrap_time(24)# the time column can be changed with time_column (default 't')new_df = df.wrap_time(wrap_time = 24, time_column = 't')Remove specimens with low data points
Section titled “Remove specimens with low data points”Sometimes you’ll run an experiment and have a few specimens that were tracked poorly or just have fewer data points than the rest. This can be really affect some analysis, so it’s best to remove it.
Specify the minimum number of data points you want per specimen, any lower and they’ll be removed from the metadata and data. Remember the minimum points per a single day will change with the frequency of your measurements.
# removes specimens from both the metadata and data when they have fewer data points than the user specified amount
# 1440 is 86400 / 60. So the amount of data points needed for 1 whole day if the data points are measured every minute
new_df = df.curate(points = 1440)Remove specimens that aren’t sleep deprived enough
Section titled “Remove specimens that aren’t sleep deprived enough”In the Gilestro lab we’ll sleep deprive flies to test their response. Sometimes the method won’t work and you’ll have a few flies mixed in that have slept normally. Call this method to remove all flies that have been asleep for more than a certain percentage over a given time period. This method can return two different outputs depending on the argument for the remove parameter. If it’s a number between 0 and 1 then any specimen with more than that fraction as asleep will be removed. If left as False then a pandas data frame is returned with the sleep fraction per specimen.
# Here we are removing specimens that have slept for more than 20% of the time between the period of 24 and 48 hours.dfn = df.remove_sleep_deprived(start_time = 24, end_time = 48, remove = 0.2, sleep_column = 'asleep', t_column = 't')
# Here we will return the sleep fraction per specimendf_sleep_fraction = df.remove_sleep_deprived(start_time = 24, end_time = 48, sleep_column = 'asleep', t_column = 't')Interpolate missing results
Section titled “Interpolate missing results”Sometimes you’ll have missing data points, which is not usually too big of a problem. However, sometimes you’ll need to do some analysis that requires regularly measured data. Use the .interpolate_linear() method to set a recording frequency and linearly interpolate any missing points from the surrounding data, per specimen.
# Set the variable you want to interpolate and sampling frequency you'd like (step_size)
# step size is given in seconds. Below would interpolate the data for every 5 mins from the min time to max timenew_df = df.interpolate_linear(variable = 'x', step_size = 300)Baseline
Section titled “Baseline”Not all experiments are run at the same time and you’ll often have differing number of days before an interaction (such as sleep deprivation) occurs. To have all the data aligned so the interaction day is the same include in your metadata .csv file a column called baseline. Within this column, write the number of additional days that needs to be added to align to the longest set of baseline experiments.
# add addtional time to specimens time column to make specific interaction times line up when the baseline time is not consistent# the metadata must contain a a baseline column with an integer from 0 - infinity
df = df.baseline(column = 'baseline')
# baseline returns a new behavpy object; if your experimental days are not 24 hours long set day_lengthAdd day numbers and phase
Section titled “Add day numbers and phase”Add new columns to the data, one called phase will state whether it’s light or dark given your reference hour and a normal circadian rhythm (12:12). However, if you’re working with different circadian hours you can specify the time it turns dark.
# Add a column with the a number which indicates which day of the experiment the row occured on# Also add a column with the phase of day (light, dark) to the data# This method is performed in place and won't return anything.# However you can make it return a new dataframe with the inplace = Falsedf.add_day_phase(t_column = 't') # default parameter for t_column is 't'
# if you're running circadian experiments you can change the length of the days the experiment is running# as well as the time the lights turn off, see below.
# Here the experiments had days of 30 hours long, with the lights turning off at ZT 15 hours.# Also we changed inplace to False to return a modified behavpy, rather than modify it in place.df = df.add_day_phase(day_length = 30, lights_off = 15, inplace = False)Estimate Feeding
Section titled “Estimate Feeding”If you’re using the ethoscope we can approximate the amount of time feeding by labelling micro-movements near the end of he tube with food in it as feeding times. This method relies upon your data having a micro column which should be generated if you load the data with the max_velocity_detector or sleep_annotation loading function.
This method will return a new behavpy object that has an additional column called ‘feeding’ with a boolean label (True/False). The subsequent new column can then be plotted as is shown on the next page.
# You need to declare if the food is positioned on the outside or inside so the method knows which end to look atnew_df = df.feeding(food_position = 'outside', dist_from_food = 0.05, micro_mov = 'micro', x_position = 'x') # micro_mov and x_position are the column names and defaults# The default for distance from food is 0.05, which is a hedged estimate. Try looking at the spread of the x position to get a better idea what the number should be for your dataAutomatically remove dead animals
Section titled “Automatically remove dead animals”Sometimes the specimen dies or the tracking is lost. This method will remove all data of the specimen after they’ve stopped moving for a considerable length of time.
# a method to remove specimens that havent moved for certain amount of time# only data past the point deemed dead will be removed per specimennew_df = df.curate_dead_animals()
# Below are the standard numbers and their variable names the function uses to remove dead animals:# time_window = 24: The window in which death is defined, set to 24 hours or 1 day# prop_immobile = 0.01: The proportion of immobility that counts as "dead" during the time window# resolution = 24: How much the scanning window overlap, expressed as a factorFind lengths of bouts of sleep
Section titled “Find lengths of bouts of sleep”# break down a specimens sleep into bout duration and type
bout_df = df.sleep_bout_analysis() duration asleep tid2019-08-02_14-21-23_021d6b|01 60.0 True 86400.02019-08-02_14-21-23_021d6b|01 900.0 False 86460.0... ... ... ...2020-08-07_12-23-10_172d50|05 240.0 True 430980.02020-08-07_12-23-10_172d50|05 120.0 False 431760.02020-08-07_12-23-10_172d50|05 60.0 True 431880.0# have the data returned in a format ready to be made into a histogramhist_df = df.sleep_bout_analysis(as_hist = True, max_bins = 30, bin_size = 1, time_immobile = 5, asleep = True) bins count probid2019-08-02_14-21-23_021d6b|01 60 0 0.0000002019-08-02_14-21-23_021d6b|01 120 179 0.4004472019-08-02_14-21-23_021d6b|01 180 92 0.205817... ... ... ...2020-08-07_12-23-10_172d50|05 1620 1 0.0024272020-08-07_12-23-10_172d50|05 1680 0 0.0000002020-08-07_12-23-10_172d50|05 1740 0 0.000000# max_bins is the largest bout you want to include# bin_size is what length runs together, i.e. 5 would find all bouts between factors of 5 minutes# time_immobile is the time in minutes sleep was defined as prior. This removes anything that is smaller than this as produced by error previously.# if asleep is True (the default) the return data frame will be for asleep bouts, change to False for one for awake boutsPlotting a histogram of sleep_bout_analysis

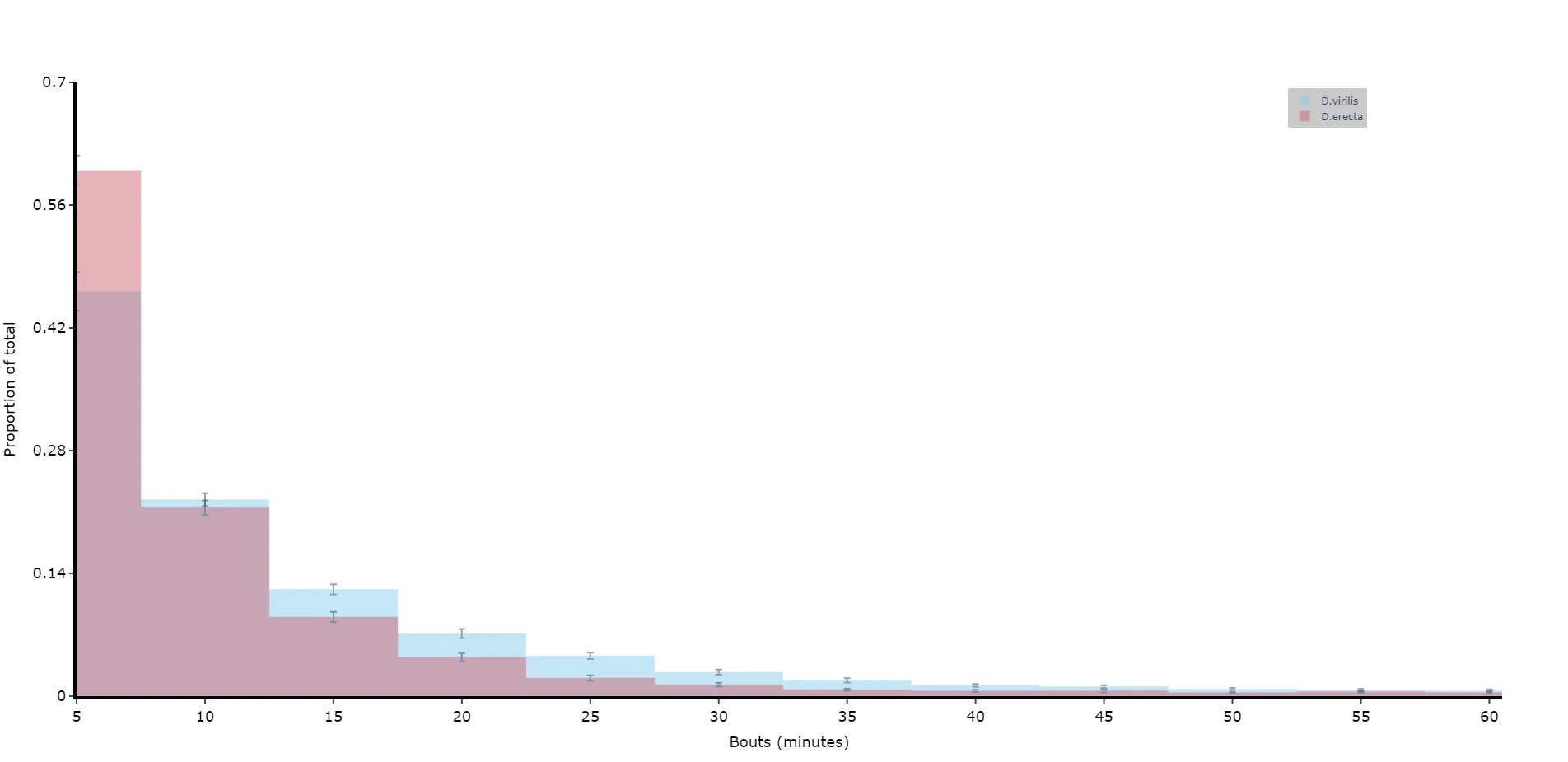

Section titled “Plotting a histogram of sleep_bout_analysis”# You can take the output from above and create your own histograms, or you can use this handy method to plot a historgram with error bars from across your specimens# Like all functions you can facet by your metadata# Here we'll compare two of the species and group the bouts into periods of 5 minutes, with up to 12 of them (1 hour)# See the next page for more information about plots
fig = df.plot_sleep_bouts( sleep_column = 'asleep', facet_col = 'species', facet_arg = ['D.vir', 'D.ere'], facet_labels = ['D.virilis', 'D.erecta'], bin_size = 5, max_bins = 12)fig.show()
Find bouts of sleep
Section titled “Find bouts of sleep”# If you haven't already analysed the dataset to find periods of sleep,# but you do have a column containing the movement as True/False.# Call this method to find contiguous bouts of sleep according to a minimum length
new_df = df.sleep_contiguous(time_window_length = 60, min_time_immobile = 300)Sleep download functions as methods
Section titled “Sleep download functions as methods”# some of the download functions mentioned previously can be called as methods if the data wasn't previously analysed# don't call this method if your data was already analysed!# If it's already analysed it will be missing columns needed for this method
new_df = df.motion_detector(time_window_length = 60)
